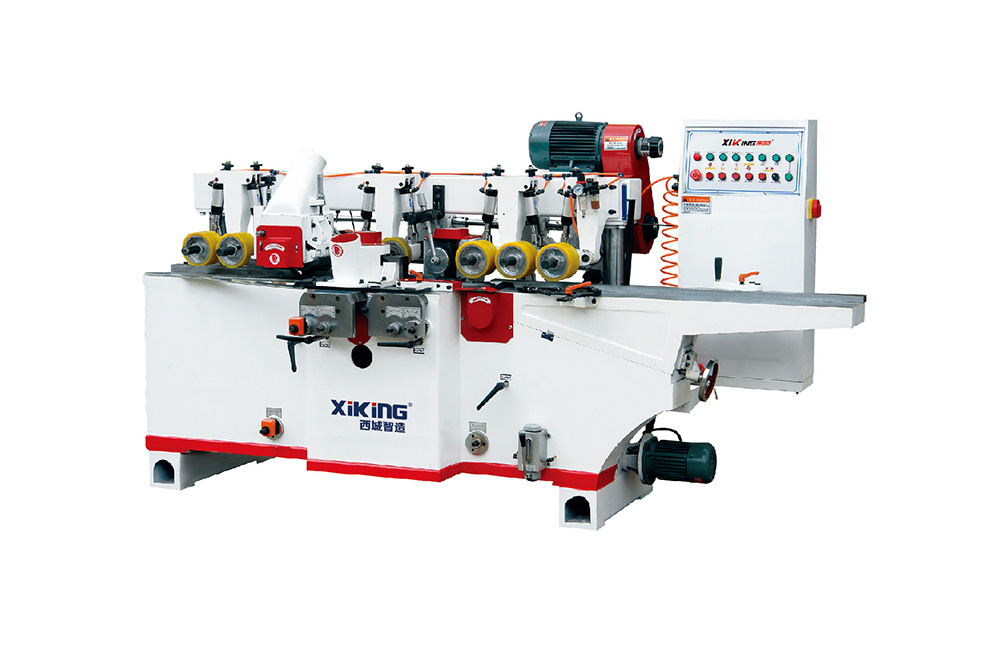

產(chǎn)品中心MB5016五軸四面木工刨銑機(jī)
參數(shù)配置
|
加工寬度 |
Machining width |
18-160mm |
|
加工厚度 |
Machining thickness |
8-100mm |
|
送料速度 |
Feeding speed |
5-20m/min |
|
主軸直徑 |
Main shaft diameter |
40mm |
|
主軸轉(zhuǎn)速 |
Main shaft revolution |
6000r/min |
|
氣源壓力 |
Pneumatic source pressure |
0.7Mpa |
|
橫梁升降 |
Horizontal lifting |
0.75kw |
|
送料 |
Feeding materials |
2.2kw |
|
總功率 |
General power |
20.9kw |
|
送料輪直徑 |
Feeding wheel diamet |
φ140mm |
|
吸塵管直徑 |
Dust outlet diameter |
φ120mm |
|
外形尺寸（長x寬x高） |
Physical dimensions |
3185x1210x1405mm |
